Serie ATEX

+ 9

AT22-30 XS - AT22-40 XS - AT22-30 S - AT22-40 S - AT22-30 M - AT22-40 M - AT22-40 L:

  • Essential equipment to minimize the risk of explosion in potentially hazardous environments
  • Explosion proof ATEX certified for dust Zone 22 and gas Zone 2 in compliance with the new European ATEX directive 2014/34/EU:
    • > Zone 22 – A place in which an explosive atmosphere in the form of a cloud of combustible dust in air is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
    • > Zone 2 – A place in which an explosive atmosphere consisting of a mixture with air of dangerous substances in the form of gas, vapour or mist is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
  • Some examples of such environments include: flour and grain mills, bakeries, sites in which electrostatically charged particles are present, etc…

AT22-A XS - ​AT22-A S - ​AT22-A M - ​AT22-A L:

  • Non-electric units, powered by compressed air
  • Essential equipment to minimize the risk of explosion in potentially hazardous environments
  • Explosion proof ATEX certified for dust Zone 22 and gas zone 2 in compliance with the new European ATEX directive 2014/34/EU:
    • > Zone 22 – A place in which an explosive atmosphere in the form of a cloud of combustible dust in air is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
    • > Zone 2 – A place in which an explosive atmosphere consisting of a mixture with air of dangerous substances in the form of gas, vapour or mist is not likely to occur in normal operation but, if it does occur, will persist for a short period only.
  • Some examples of such environments include: flour and grain mills, bakeries, sites in which electrostatically charged particles are present, etc…
  • Internal cyclone cone. To further protect the filter from dust and debris.
  • Special configuration of the coaxial induction turbine (AT22 M & L models) provides extra long life and durability.
Of wil je een showroom bezoek aanvragen?

  • Uitvoeringen

    • AT22-30 XS

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 30
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 66x60x130
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 60
      Gross weight (Kg) 66
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-40 XS

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 30
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 66x60x130
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 60
      Gross weight (Kg) 66
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-30 S

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 50
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 66x60x149
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 80
      Gross weight (Kg) 85
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-40 S

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 50
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 66x60x149
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 80
      Gross weight (Kg) 85
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-30 M

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 50
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 63x86x155
      Packaging dimensions (cm) 70x92x195
      Net weight (kg) 94
      Gross weight (Kg) 104
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-40 M

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 63x86x155
      Packaging dimensions (cm) 70x92x195
      Net weight (kg) 94
      Gross weight (Kg) 104
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

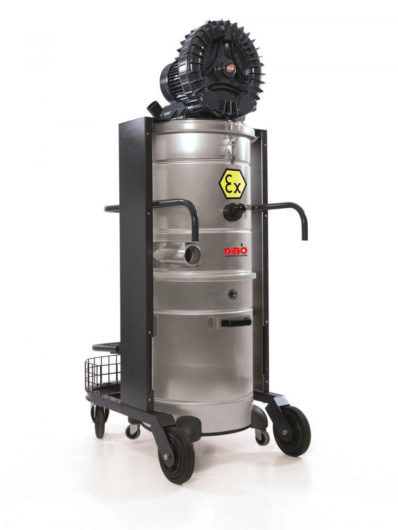

    • AT22-30 L

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 63x86x155
      Packaging dimensions (cm) 70x92x195
      Net weight (kg) 98
      Gross weight (Kg) 108
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-40 L

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Turbine type coaxial induction
      Stages (no.) 1 stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 71
      Machine base dimensions 63x86x155
      Packaging dimensions (cm) 70x92x195
      Net weight (kg) 98
      Gross weight (Kg) 108
      Air consumption (6 bar) l/m n/a
      Required air pressure (bar) n/a
      Vacuum power at 6 bar (mm H2O) n/a
      Air flow at 6 bar (mc./h) n/a
      Compressed air connection (inches) n/a

    • AT22-A XS

      Voltage (V) ; Frequency (Hz) n/a
      Max. power used (W) n/a
      Turbine type n/a
      Stages (no.) n/a
      Water lift (mm H2O) n/a
      Air flow (cm./h) n/a
      Total barrel capacity (l) 30
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 70
      Machine base dimensions 70x75x135
      Packaging dimensions (cm) 70x75x175
      Net weight (kg) 34
      Gross weight (Kg) 43
      Air consumption (6 bar) l/m 1600
      Required air pressure (bar) 4 - 9
      Vacuum power at 6 bar (mm H2O) 4600
      Air flow at 6 bar (mc./h) 408
      Compressed air connection (inches) 3/8"

    • AT22-A S

      Voltage (V) ; Frequency (Hz) n/a
      Max. power used (W) n/a
      Turbine type n/a
      Stages (no.) n/a
      Water lift (mm H2O) n/a
      Air flow (cm./h) n/a
      Total barrel capacity (l) 50
      Filter surface area (sq.cm.) 13000
      Protection class (IP) IP65
      Noise level (dB) 70
      Machine base dimensions 70x75x135
      Packaging dimensions (cm) 70x75x175
      Net weight (kg) 35
      Gross weight (Kg) 45
      Air consumption (6 bar) l/m 1600
      Required air pressure (bar) 4 - 9
      Vacuum power at 6 bar (mm H2O) 4600
      Air flow at 6 bar (mc./h) 408
      Compressed air connection (inches) 3/8"

    • AT22-A M

      Voltage (V) ; Frequency (Hz) n/a
      Max. power used (W) n/a
      Turbine type n/a
      Stages (no.) n/a
      Water lift (mm H2O) n/a
      Air flow (cm./h) n/a
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 70
      Machine base dimensions 66x85x140
      Packaging dimensions (cm) 70x92x185
      Net weight (kg) 84
      Gross weight (Kg) 98
      Air consumption (6 bar) l/m 1600
      Required air pressure (bar) 4 - 9
      Vacuum power at 6 bar (mm H2O) 4600
      Air flow at 6 bar (mc./h) 408
      Compressed air connection (inches) 3/8"

    • AT22-A L

      Voltage (V) ; Frequency (Hz) n/a
      Max. power used (W) n/a
      Turbine type n/a
      Stages (no.) n/a
      Water lift (mm H2O) n/a
      Air flow (cm./h) n/a
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IP65
      Noise level (dB) 70
      Machine base dimensions 66x85x140
      Packaging dimensions (cm) 70x92x185
      Net weight (kg) 84
      Gross weight (Kg) 98
      Air consumption (6 bar) l/m 1600
      Required air pressure (bar) 4 - 9
      Vacuum power at 6 bar (mm H2O) 4600
      Air flow at 6 bar (mc./h) 408
      Compressed air connection (inches) 3/8"

  • Eigenschappen

    • Producteigenschappen

      • AT22-30 XS, AT22-40 XS, AT22-30 S, AT22-40 S, AT22-30 M, AT22-40 M, AT22-30 L, AT22-40 L: Special configuration of the coaxial induction turbine (AT22 M & L models) provides EXTRA LONG LIFE and durability. Completely maintenancefree. Continuous duty.
      • AT22-30 XS, AT22-40 XS, AT22-30 S, AT22-40 S, AT22-30 M, AT22-40 M, AT22-30 L, AT22-40 L: Tangential tank entry creates a vortex of incoming dust. Helps keep the filter clean.
      • AT22-30 XS, AT22-40 XS, AT22-30 S, AT22-40 S, AT22-30 M, AT22-40 M, AT22-30 L, AT22-40 L: Autonomous filter shaking mechanism shakes the filter continuously during operation. Convenient knob on the tank for manual filter shaking.
      • AT22-30 XS, AT22-40 XS, AT22-30 S, AT22-40 S, AT22-30 M, AT22-40 M, AT22-30 L, AT22-40 L: Smart mechanism for lowering and detaching tanks by raising a handy lever. Both tanks easily roll out while the turbine remains always in place (AT22 M & L models). No need to ever lift the heavy turbine to access the filter. Stainless steel tank and filtration chamber in AISI304.
      • Internal cyclone cone. To further protect the filter from dust and debris.
      • AT22-A XS, AT22-A S, AT22-A M, AT22-A L: Non-electric. Powered by compressed air. Pressure regulator allows the adjustment of compressed air for optimal performance.
      • AT22-A XS, AT22-A S, AT22-A M, AT22-A L: Stainless steel tank and filtration chamber in AISI304.
      • AT22-A XS, AT22-A S, AT22-A M, AT22-A L: Convenient lever to lower and detach the easy rollout lower tank.
      • AT22-A XS, AT22-A S, AT22-A M, AT22-A L: Tangential tank entry creates a vortex of incoming dust. Helps keep the filter clean.
      • AT22-A XS, AT22-A S, AT22-A M, AT22-A L: Manual filter shaking mechanism with ergonomic handle.

  • Toebehoren

    • Standaard uitvoering

      • XS, S, M, L MODELS: Star shaped filter, complete - antistatic, class L
      • Inlet reducer cuff 70 > 50 - stainless steel

    • Optionele accessoires

      • Kit Standard Ø40mm
      • Kit Extra Ø50mm
