Serie M&T

+ 11

M-Models:

  • Industrial vacuum cleaners with rear-mounted enclosed motors
  • Cabin enclosure protects the motors from external elements and acts as a sound barrier reducing excessive noise
  • Robust all steel frame and chassis
  • Mobile and maneuverable
  • Elegant and sophisticated design
  • User friendly interface
  • Mutipurpose applications in a wide variety of industries

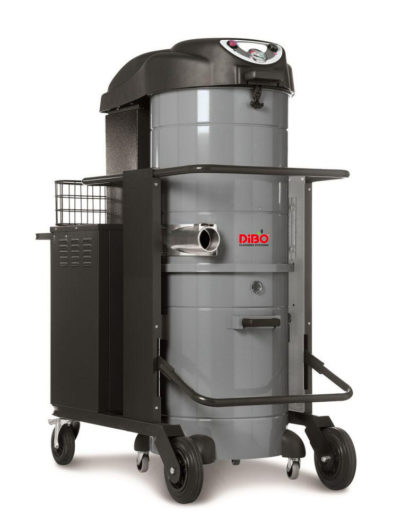

T-Models:

  • Industrial vacuum cleaners with rear-mounted enclosed coaxial induction turbines for continuous duty
  • Rear position of turbine permits the use of larger two-stage turbines for extra suction power and higher air flow
  • Cabin enclosure protects the turbines from external elements and acts as a sound barrier reducing excessive noise
  • Robust all steel frame and chassis
  • Mobile and maneuverable
  • Elegant and sophisticated design
  • User friendly interface
  • Multipurpose applications in a wide variety of industries
  • Modular interchangeable system: same machine can be used with Longopac or with a standard tank.
  • Internal cyclone cone. To further protect the filter from dust and debris.
Of wil je een showroom bezoek aanvragen?

  • Uitvoeringen

    • M 2 M SE

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 2400
      Motor (No.) 2
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 430
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 72
      Machine base dimensions 66x62x127
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 98
      Gross weight (Kg) 105

    • M 3 M SE

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x62x127
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 103
      Gross weight (Kg) 110

    • M 3 L SE

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x92x146
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 108
      Gross weight (Kg) 115

    • M 3 LP SE

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x92x146
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 118
      Gross weight (Kg) 125

    • M 2 M SA

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 2400
      Motor (No.) 2
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 430
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 72
      Machine base dimensions 66x62x127
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 103
      Gross weight (Kg) 110

    • M 3 M SA

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) 60
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x62x127
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 108
      Gross weight (Kg) 118

    • M 3 L SA

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x62x127
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 118
      Gross weight (Kg) 125

    • M 3 LP SA

      Voltage (V) ; Frequency (Hz) 230 ; 50/60
      Max. power used (W) 3600
      Motor (No.) 3
      Stages (no.) 2-stage bypass
      Water lift (mm H2O) 2500
      Air flow (cm./h) 650
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 73
      Machine base dimensions 66x92x146
      Packaging dimensions (cm) 70x92x180
      Net weight (kg) 118
      Gross weight (Kg) 125

    • T 30

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 30) / 66x110x150 (T 30 SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (kg) 137
      Gross weight (Kg) 147

    • T 40

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x150 (T 30 SA) / 66x110x160 (T 40)66x110x150 (T 40 SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (kg) 140
      Gross weight (Kg) 150

    • T 55

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 4000 - 5,5hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3300
      Air flow (cm./h) 380
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 55) / 66x110x1500 (T 55 SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 140
      Gross weight (Kg) 150

    • T 75P

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 5000 - 7,5hp
      Motor (No.) coaxial induction
      Stages (no.) 2-stage parallel
      Water lift (mm H2O) 3600
      Air flow (cm./h) 620
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 75P) / 66x110x150 (T 75P SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 158
      Gross weight (Kg) 168

    • T 75S

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 5000 - 7,5hp
      Motor (No.) coaxial induction
      Stages (no.) 2-stage serial
      Water lift (mm H2O) 5100
      Air flow (cm./h) 400
      Total barrel capacity (l) 100
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 75S) / 66x110x150 (T 75S SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 158
      Gross weight (Kg) 168

    • T 30 LP

      Voltage (V) ; Frequency (Hz) 230 ; 50
      Max. power used (W) 2200 - 3hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 30 LP) / 66x110x150 (T 30 LP SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 141
      Gross weight (Kg) 151

    • T 40 LP

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 3000 - 4hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3200
      Air flow (cm./h) 350
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 40 LP) / 66x110x150 (T 40 LP SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 144
      Gross weight (Kg) 154

    • T 55 LP

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 4000 - 5,5hp
      Motor (No.) coaxial induction
      Stages (no.) 1-stage
      Water lift (mm H2O) 3300
      Air flow (cm./h) 380
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 55 LP) / 66x110x150 (T 55 LP SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 144
      Gross weight (Kg) 154

    • T 75P LP

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 5000 - 7,5hp
      Motor (No.) coaxial induction
      Stages (no.) 2-stage parallel
      Water lift (mm H2O) 3600
      Air flow (cm./h) 620
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 75P LP) / 66x110x150 (T 75P LP SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 162
      Gross weight (Kg) 172

    • T 75S LP

      Voltage (V) ; Frequency (Hz) 400 ; 50
      Max. power used (W) 5000 - 7,5hp
      Motor (No.) coaxial induction
      Stages (no.) 2-stage serial
      Water lift (mm H2O) 5100
      Air flow (cm./h) 400
      Total barrel capacity (l) n/a
      Filter surface area (sq.cm.) 19500
      Protection class (IP) IPX4
      Noise level (dB) 70
      Machine base dimensions 66x110x160 (T 75S LP) / 66x110x150 (T 75S LP SA)
      Packaging dimensions (cm) 70x130x180
      Net weight (Kg) 162
      Gross weight (Kg) 172

  • Eigenschappen

    • Producteigenschappen

      • SERIE M: Rear motor housing for motor protection and noise reduction. Convenient attachment compartment.
      • SERIE M: Electrically assisted filter shaking mechanism, at the push of a button (SE models). User friendly front control panel.
      • SERIE M: Fully automatic hands-free filter shaking mechanism shakes the filter at regularly set intervals (SA models).
      • SERIE M: Handy lever to easily lower the tank. Tank rolls out on wheels. Large wheels for transport over all terrains. Brakes to immobilize the machine.
      • Easy to open hinged lid provides effortless access to the filter chamber containing a star-shaped filter with large filtration surface area.
      • Internal cyclone cone. To further protect the filter from dust and debris.
      • Modular interchangeable system: same machine can be used with Longopac or with a standard tank.
      • SERIE T: Tangential tank entry creates a vortex of incoming dust. Helps keep the filter clean.
      • SERIE T: Manual filter shaking mechanism with ergonomic handle (non SA models).
      • SERIE T: Rear cabin compartment encloses the turbine to protect it from environmental factors. Also acts as sound barrier for noise reduction. Handy lever to easily lower the tank. Tank rolls out on wheels. Large wheels for transport over all terrains. Brakes to immobilize the machine.

  • Toebehoren

    • Standaard uitvoering

      • Star shaped filter - polyester, class L
      • Inlet reducer cuff 70 > 50

    • Optionele accessoires

      • Kit Standard Ø40mm
      • Kit Extra Ø50mm
