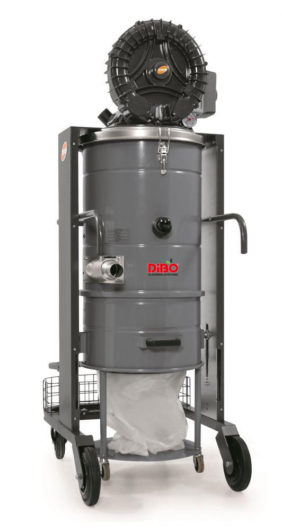

Serie T0
- Universal, multipurpose industrial vacuum cleaners
- Robust all-steel structure
- Coaxial induction turbines provide powerful suction, continuous duty and durability and are maintenance-free
- A valuable tool for all work sites such as factories, warehouses, workshops
-
Special configuration of the coaxial induction turbine provides extra long life and durability.
-
Robust frame. Wheels with brakes. Convenient attachments compartment.
Of wil je een showroom bezoek aanvragen?
-
Uitvoeringen
-
TO 30 M
Voltage (V) ; Frequency (Hz) 230 ; 50 Max. power used (W) 2200 - 3hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) 60 Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x155 Packaging dimensions (cm) 70x92x195 Net weight (kg) 94 Gross weight (Kg) 104 -
TO 40 M
Voltage (V) ; Frequency (Hz) 400 ; 50 Max. power used (W) 3000 - 4hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) 60 Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x155 Packaging dimensions (cm) 70x92x195 Net weight (kg) 94 Gross weight (Kg) 104 -
TO 30 L
Voltage (V) ; Frequency (Hz) 230 ; 50 Max. power used (W) 2200 - 3hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) 100 Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 96 Gross weight (Kg) 106 -
TO 40 L
Voltage (V) ; Frequency (Hz) 400 ; 50 Max. power used (W) 3000 - 4hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) 100 Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 98 Gross weight (Kg) 108 -
TO 55 L
Voltage (V) ; Frequency (Hz) 400 ; 50 Max. power used (W) 4000 - 5,5hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3300 Air flow (cm./h) 380 Total barrel capacity (l) 100 Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 98 Gross weight (Kg) 108 -
TO 30 LP
Voltage (V) ; Frequency (Hz) 230 ; 50 Max. power used (W) 2200 - 3hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) n/a Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 100 Gross weight (Kg) 110 -
TO 40 LP
Voltage (V) ; Frequency (Hz) 400 ; 50 Max. power used (W) 3000 - 4hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3200 Air flow (cm./h) 350 Total barrel capacity (l) n/a Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 102 Gross weight (Kg) 112 -
TO 55 LP
Voltage (V) ; Frequency (Hz) 400 ; 50 Max. power used (W) 4000-5,5hp Turbine type coaxial induction Stages (no.) 1 stage Water lift (mm H2O) 3300 Air flow (cm./h) 380 Total barrel capacity (l) n/a Filter surface area (sq.cm.) 19500 Protection class (IP) IPX4 Noise level (dB) 71 Machine base dimensions 63x86x175 Packaging dimensions (cm) 70x92x195 Net weight (kg) 102 Gross weight (Kg) 112
-
-
Eigenschappen
-
Producteigenschappen
- Special configuration of the coaxial induction turbine provides EXTRA LONG LIFE and durability.
- Tangential tank entry creates a vortex of incoming dust. Helps keep the filter clean.
- Autonomous filter cleaning mechanism shakes the filter continuously during operation. Convenient knob on the tank for manual filter shaking.
- Internal cyclone cone. To further protect the filter from dust and debris.
- Manometer indicates saturation level of filter, to signal the need for filter cleaning.
- Peephole to check contents’ level.
- Robust frame. Wheels with brakes. Convenient attachments compartment.
- Modular interchangeable system: same machine can be used with Longopac or with a standard tank.
-
-
Toebehoren
-
Standaard uitvoering
- Star shaped filter - polyester, class L
- Inlet reducer cuff 70 > 50
-
Optionele accessoires
- Kit Standard Ø40mm
- Kit Extra Ø50mm
-
-
Downloads
-
Industrial Vacuum Cleaners
industrial_vacuum_cleaners.pdf
-
